Conﬁguration switch settings

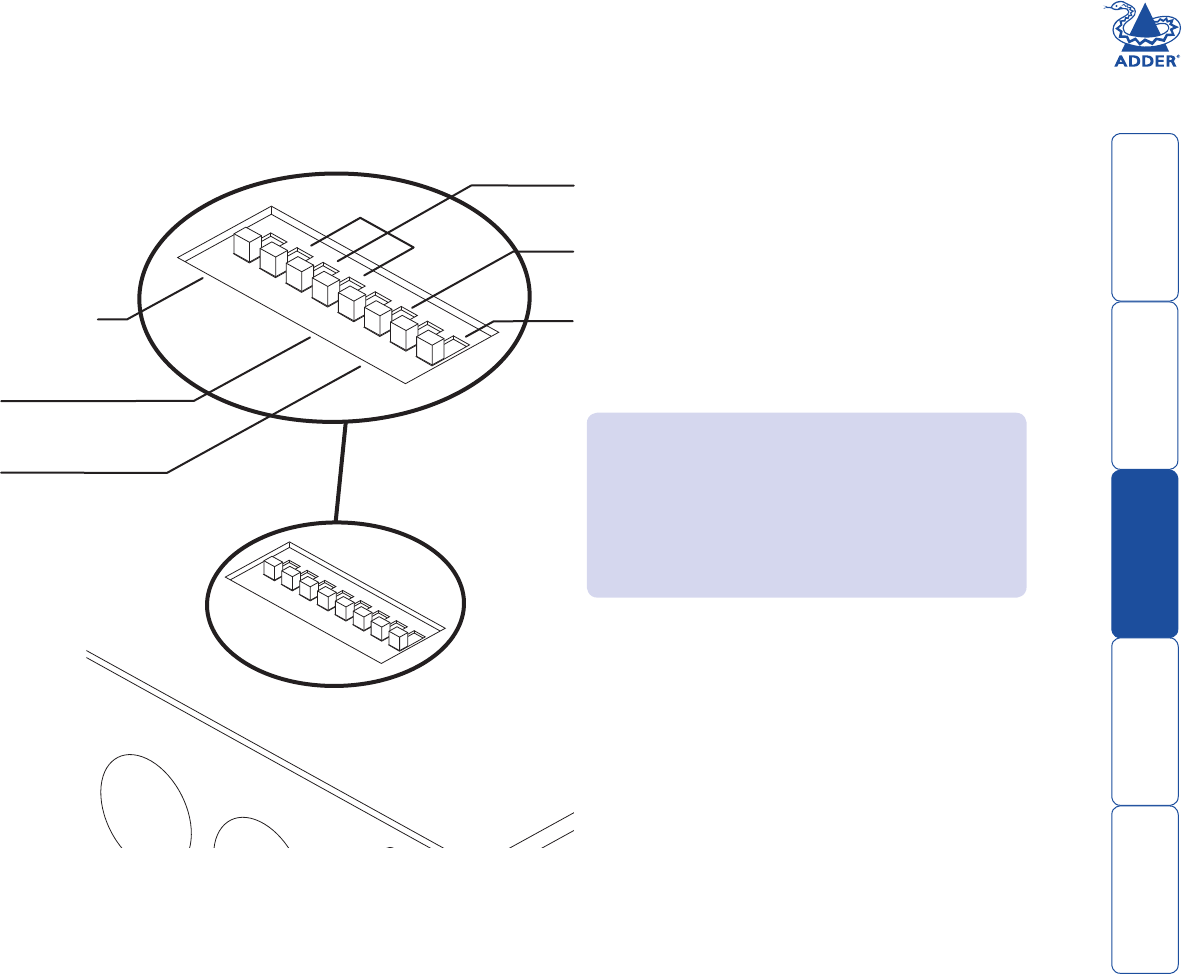

The underside of the TS4 unit features a block of eight switches which are used

to conﬁgure various fundamental settings. When shipped, all switches are set to

OFF, which produces normal operation within the TS4 unit. Further details about

switch settings can be found within sections of this guide dealing with speciﬁc

setup issues.

OFF: Normal operation

ON: (while power applied) Reset unit

OFF: Cycle between all system ports

ON: Cycle between active ports only

OFF: Normal operation

ON: Upgrade mode

OFF: Normal operation

ON: Synchrony mode

OFF: Normal operation

ON: Auto switch to powered port

2,3,4

Reserved

Note: The switch settings (except switch 8) are

consulted by the unit only during its power up

phase, i.e. when power is ﬁrst supplied by a

keyboard socket of a powered system. Therefore,

change the setting while the unit is disconnected

or use switch 8 to force a reset, whereupon the

other switches will be consulted.
